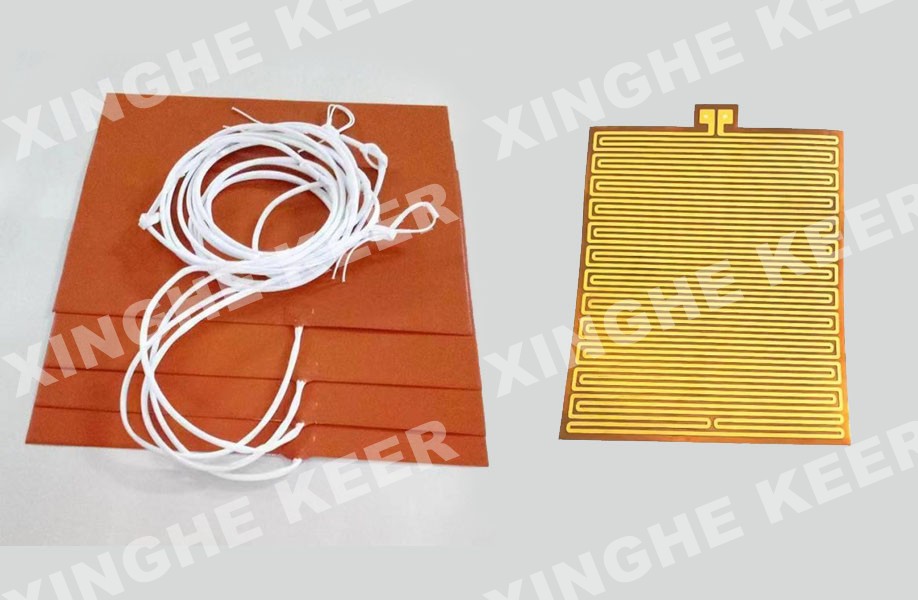

A whole sheet of the same size as the heating plate, without any splicing.
● The temperature of each part of the heating plate is uniform, and the temperature difference of each part of the heating plate during the heating process is ±0.5℃, so as to ensure the quality of the joint.
● Safe and reliable, the whole heating blanket is sealed, so it can effectively isolate short circuit, low insulation, and even leakage accidents caused by external water, steam and other factors.
| Model(mm) | Overall Dimensions/Bevel Angle(mm) | Overall Dimensions/Right Angle(mm) | Power(Kw) |
| 1000×830 | 1220×830×2.5 | 1160×830×2.5 | 5.8 |
| 1200×830 | 1420×830×2.5 | 1360×830×2.5 | 6.9 |
| 1400×830 | 1620×830×2.5 | 1560×830×2.5 | 8.1 |
| 1600×830 | 1820×830×2.5 | 1760×830×2.5 | 9.3 |
| 1800×830 | 2020×830×2.5 | 1960×830×2.5 | 10.5 |
| 1000×1000 | 1220×1000×2.5 | 1160×1000×2.5 | 7.1 |
| 1200×1000 | 1420×1000×2.5 | 1360×1000×2.5 | 8.4 |
| 1400×1000 | 1620×1000×2.5 | 1560×1000×2.5 | 9.8 |
| 1600×1000 | 1820×1000×2.5 | 1760×1000×2.5 | 11.2 |
| 1800×1000 | 2020×1000×2.5 | 1960×1000×2.5 | 12.6 |
We offer an extensive range of conveyor belt vulcanization joint machine, conveyor belt repair machine & electric pickling machine that are perfectly suited for a variety of mining machine operating environments
